Product Description

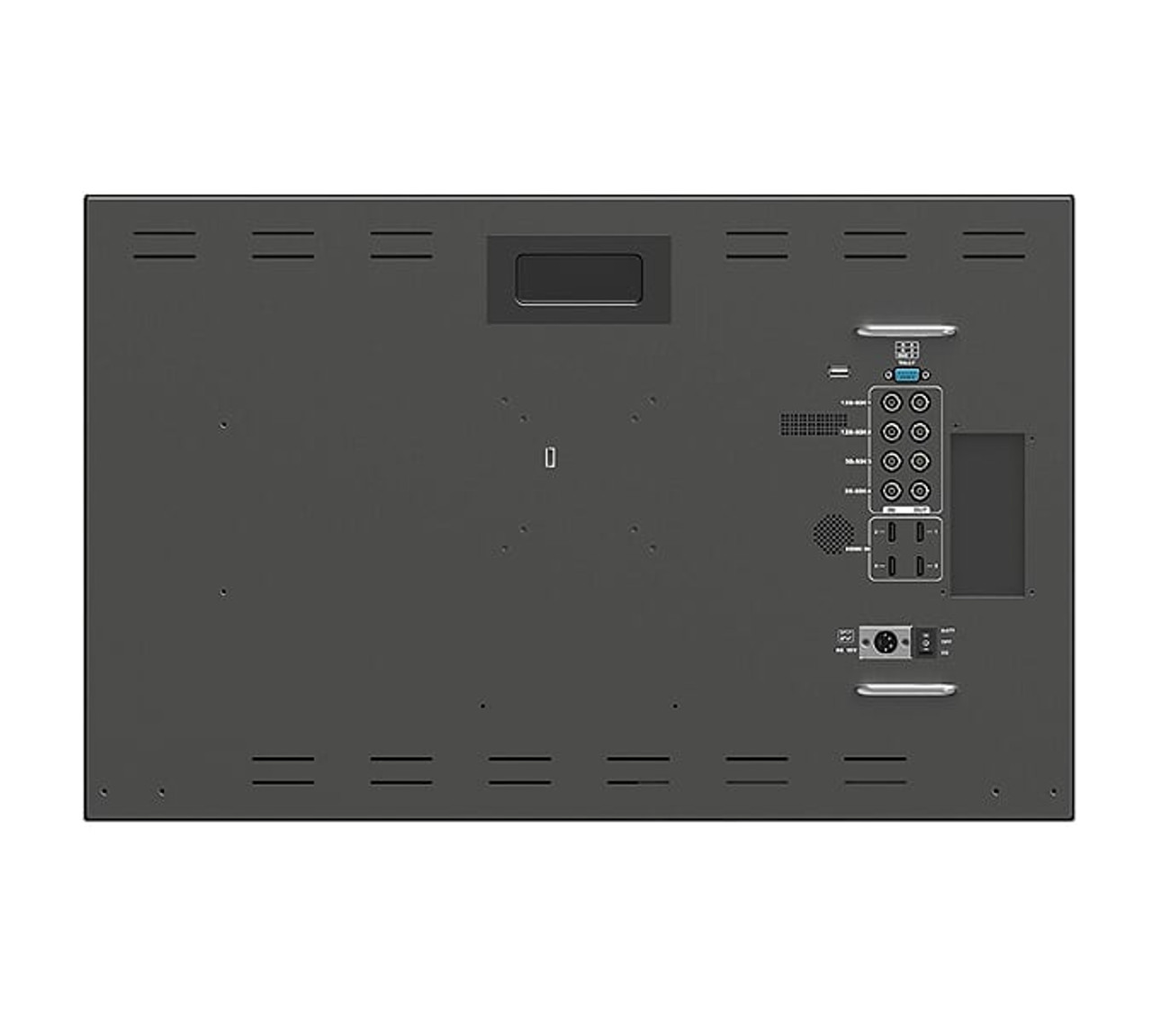

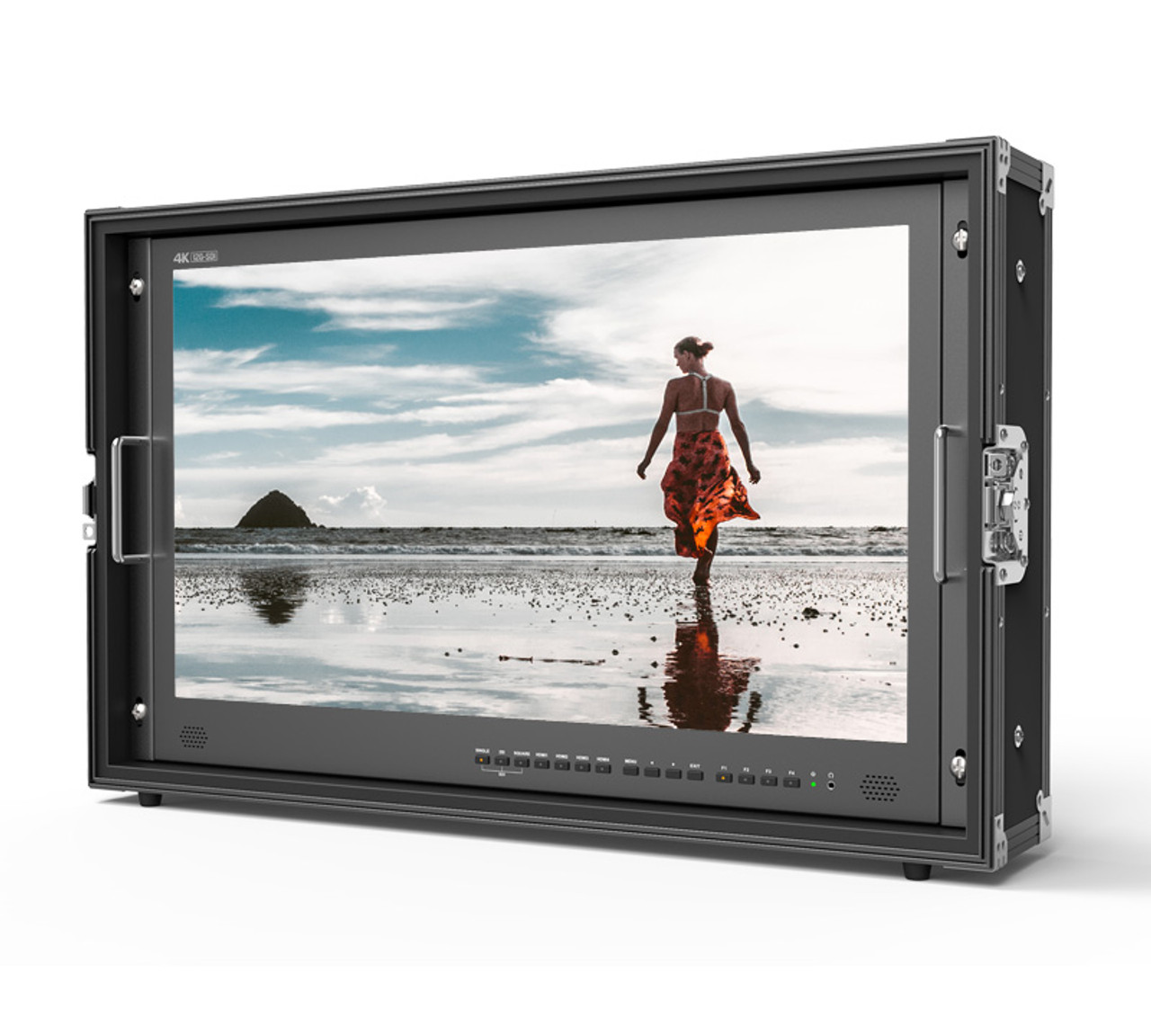

BM280-12G 28 inch carry on 12G-SDI broadcast director monitor
| Display | |
| Size | 28” |
| Resolution | 3840×2160 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/160°(H/V) |
| Video Input | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Video Loop Output (Uncompressed true 10-bit or 8-bit 422) | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | ≤61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 670×425×45mm / 761×474×173mm (with case) |
| Weight | 9.4kg / 21kg (with case) |
| Display | |
| Size | 28” |
| Resolution | 3840×2160 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/160°(H/V) |
| Video Input | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Video Loop Output (Uncompressed true 10-bit or 8-bit 422) | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | ≤61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 670×425×45mm / 761×474×173mm (with case) |
| Weight | 9.4kg / 21kg (with case) |
Product Videos
Custom Field
Screen Size 28 inches
Resolution 3840x2160
Screen IPS
Aspect Ratio 16:9
Housing Material Metal
Brightness 300 cd/m^2
Inputs 12G-SDI, 3G-SDI, HDMI, HDMI Wireless, Tally
