Product Description

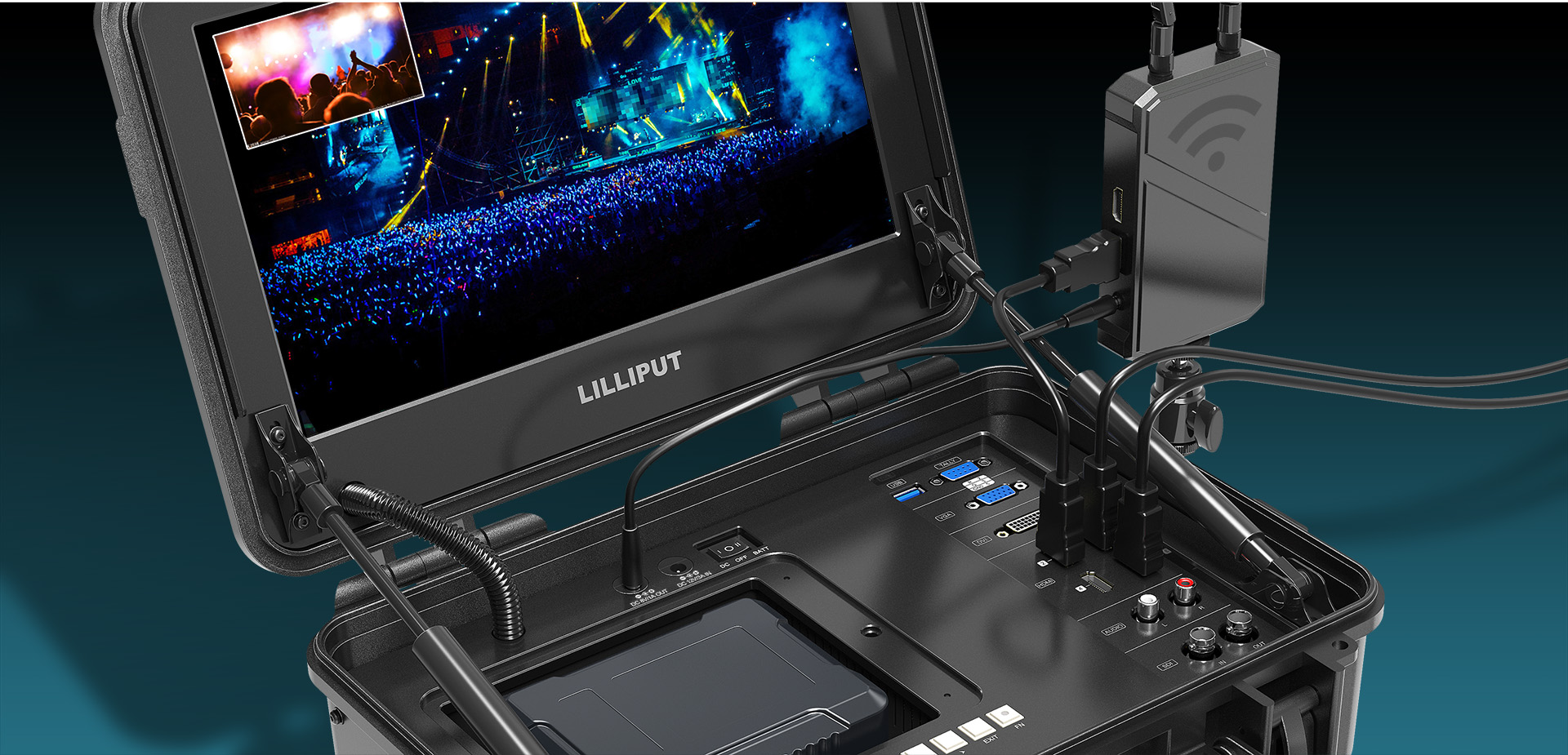

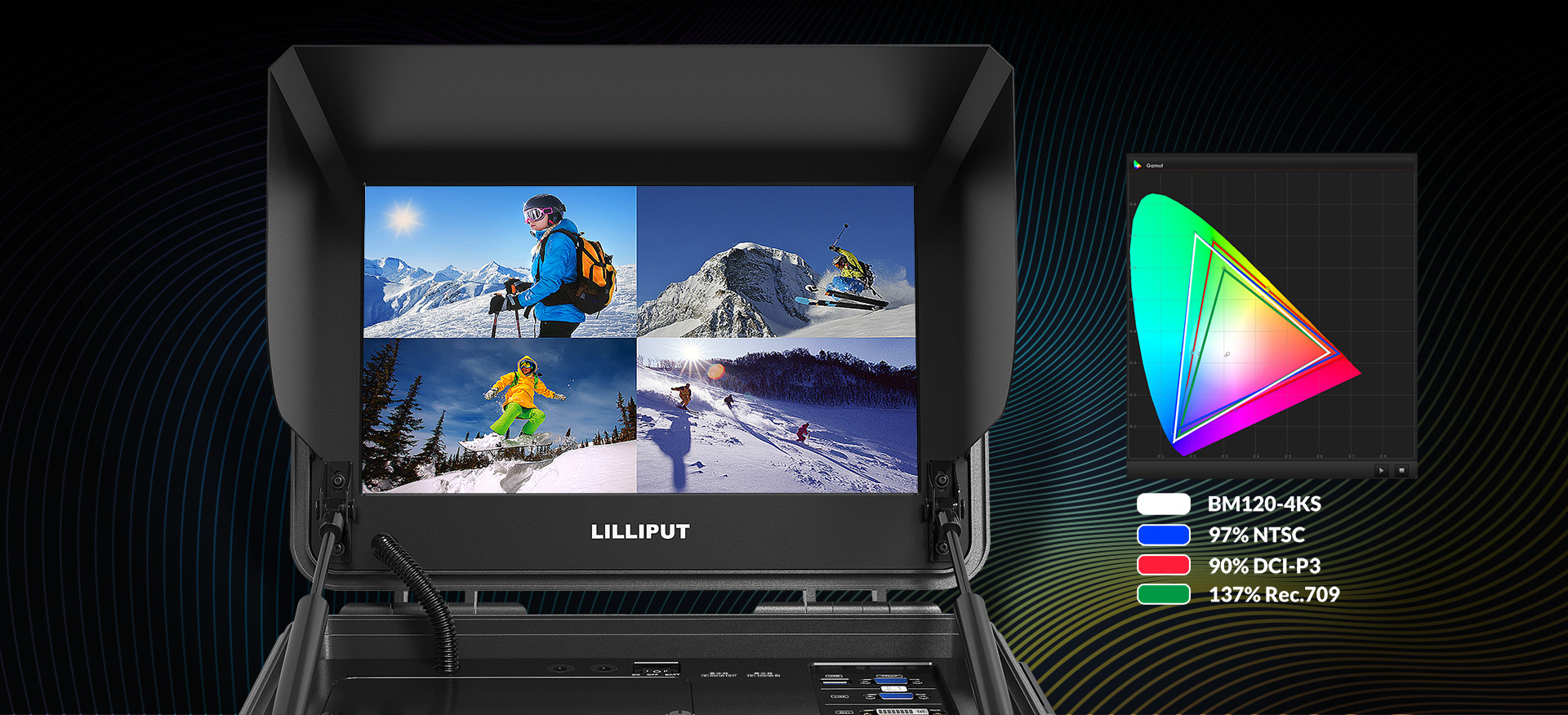

BM120-4KS 12.5" 4K HDMI Broadcast Director Monitor With SDI, HDR And 3D LUTS
| DISPLAY | |
| Panel | 12.5” LCD |
| Physical Resolution | 3840×2160 |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m2 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/ 170°(H/V) |

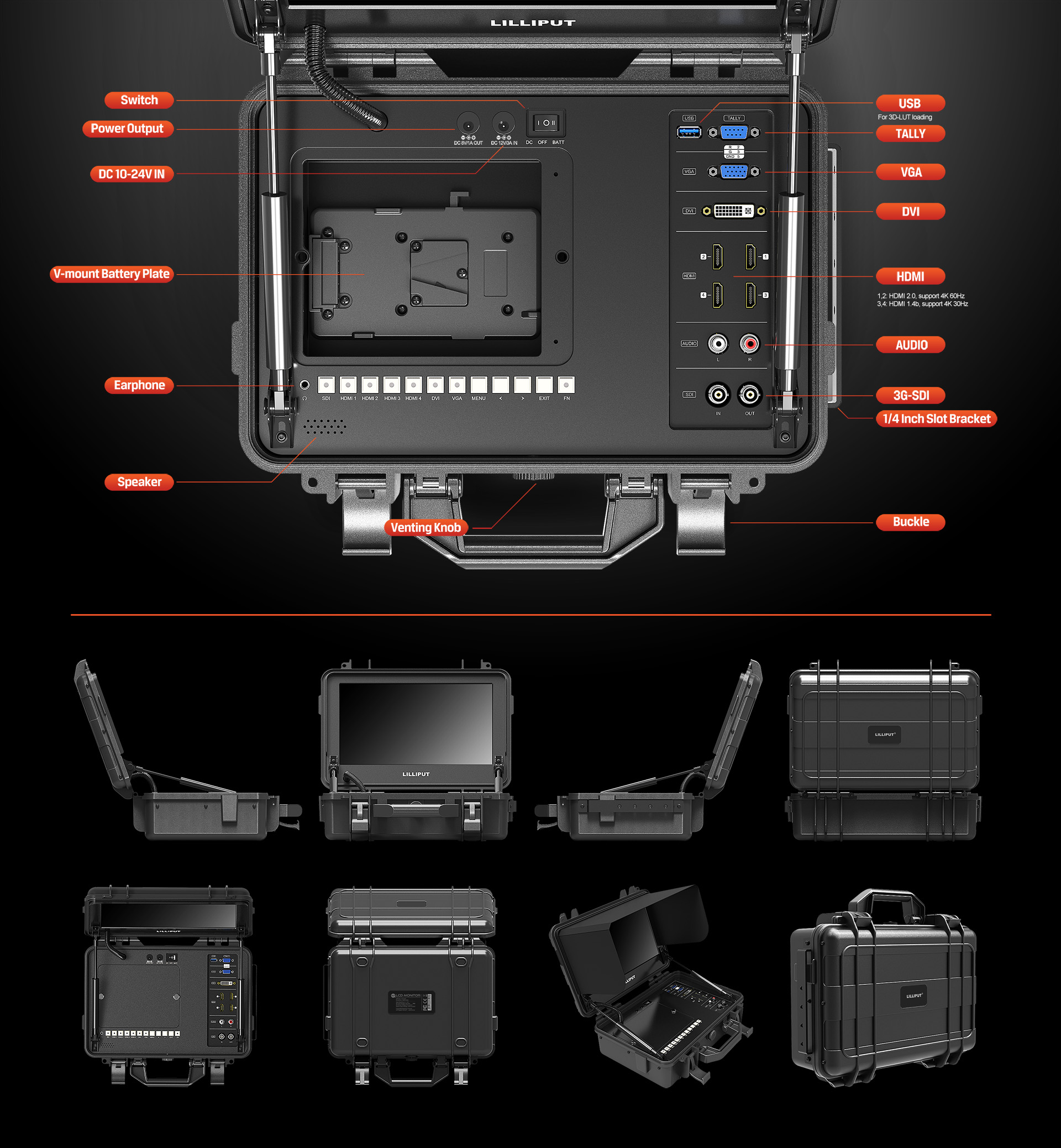

| INPUT | |
| 3G-SDI | 3G-SDI (support up to 1080p 60Hz) |
| HDMI | HDMI 2.0 ×2 (support up to 4K 60Hz) |
| HDMI 1.4b ×2 (support up to 4K 30Hz) | |
| DVI | 1 |
| VGA | 1 |
| Audio | 2 (L/R) |
| Tally | 1 |
| USB | 1 |
| OUTPUT | |
| 3G-SDI | 3G-SDI (support up to 1080p 60Hz) |
| AUDIO | |
| Speaker | 1 |
| Ear Jack | 1 |
| POWER | |
| Input Voltage | DC 10-24V |
| Power Consumption | ≤23W |

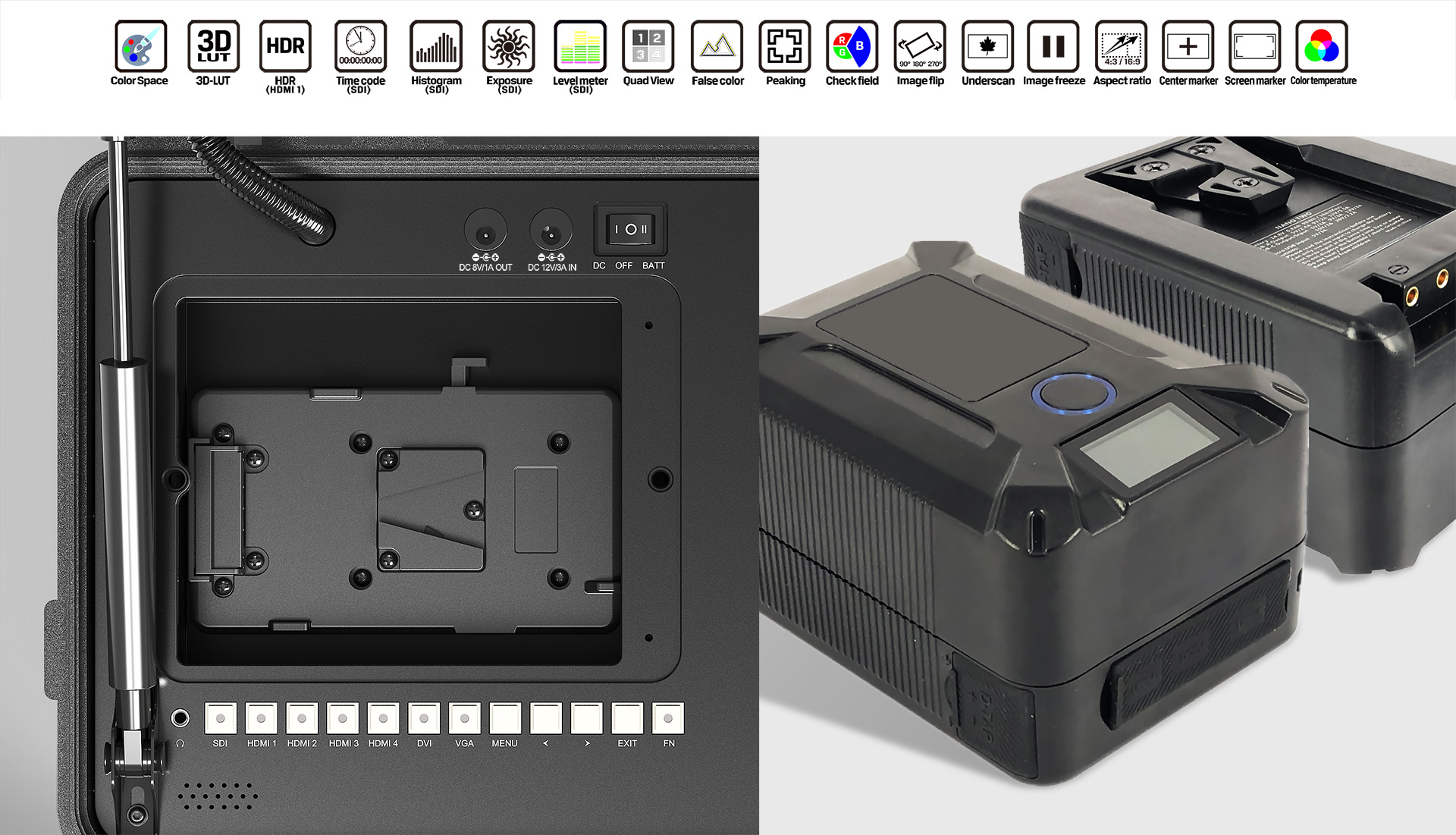

| Battery Plate | V-mount battery plate |
| Power Output | DC 8V |
| ENVIRONMENT | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | 10℃~60℃ |
| DIMENSION | |
| Dimension(LWD) | -356.8mm × 309.8mm × 122.1mm |
| Weight | 4.35kg (include accessories) |
ACCESSORIES
| DISPLAY | |
| Panel | 12.5” LCD |
| Physical Resolution | 3840×2160 |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m2 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/ 170°(H/V) |
| INPUT | |
| 3G-SDI | 3G-SDI (support up to 1080p 60Hz) |
| HDMI | HDMI 2.0 ×2 (support up to 4K 60Hz) |
| HDMI 1.4b ×2 (support up to 4K 30Hz) | |
| DVI | 1 |
| VGA | 1 |
| Audio | 2 (L/R) |
| Tally | 1 |
| USB | 1 |
| OUTPUT | |
| 3G-SDI | 3G-SDI (support up to 1080p 60Hz) |
| AUDIO | |
| Speaker | 1 |
| Ear Jack | 1 |
| POWER | |
| Input Voltage | DC 10-24V |
| Power Consumption | ≤23W |
| Battery Plate | V-mount battery plate |
| Power Output | DC 8V |
| ENVIRONMENT | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | 10℃~60℃ |
| DIMENSION | |
| Dimension(LWD) | -356.8mm × 309.8mm × 122.1mm |
| Weight | 4.35kg (include accessories) |
Product Videos
Custom Field
Screen Size 12.5 inches
Resolution 3840x2160
Screen LCD
Aspect Ratio 16:9
Housing Material Metal
Brightness 400 cd/m^2
Inputs 3G-SDI, HDMI, DVI, VGA, Audio, USB
