Product Description
A12 12.5" 4K Broadcast Monitor
| Display | |
| Size | 12.5” |
| Resolution | 3840×2160 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/170°(H/V) |

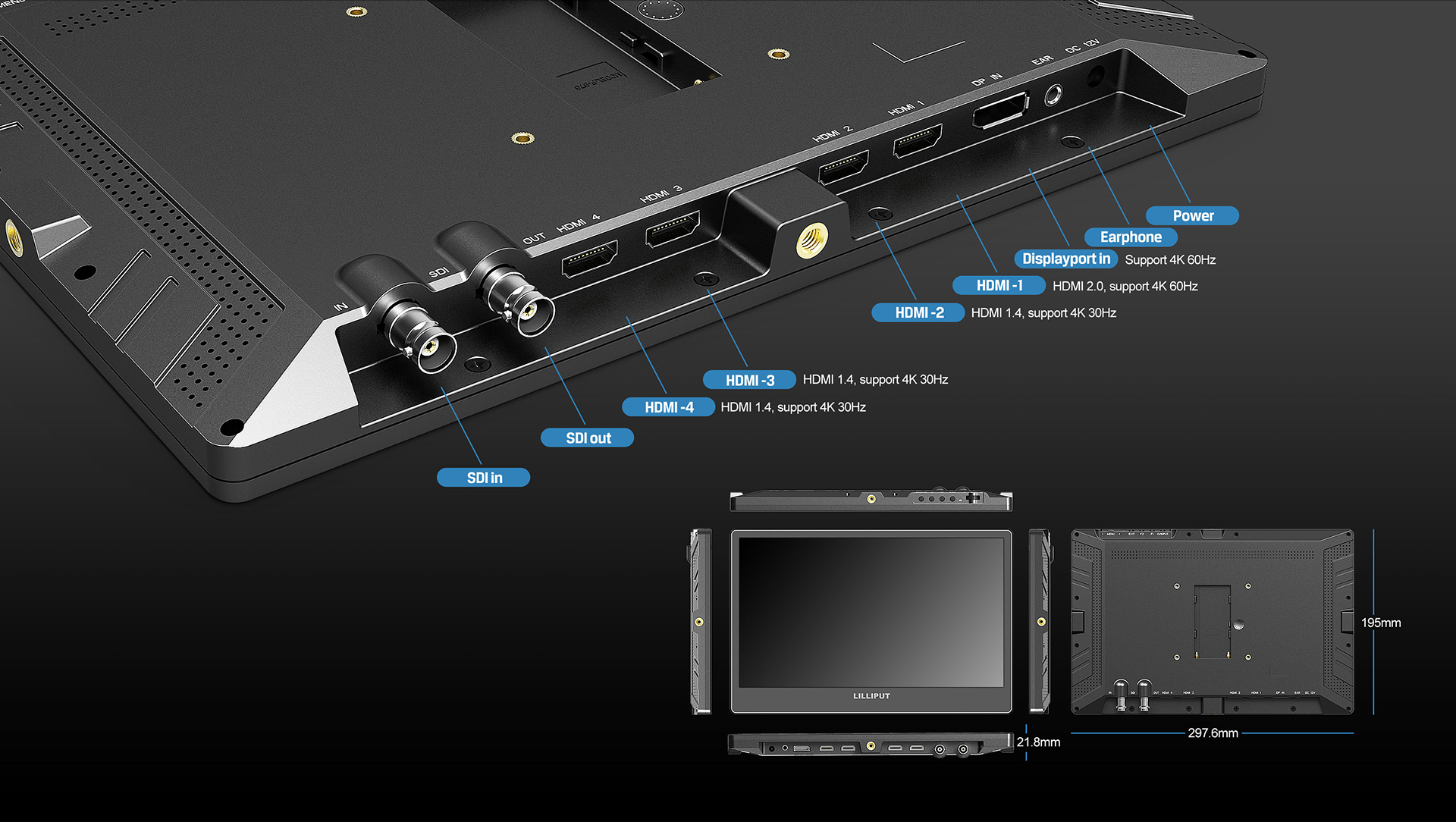

| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Display-port | 1×DP 1.2 |
| Video Loop Output | |
| SDI | 1×3G |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Display-port | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤16.8W |
| DC In | DC 7-20V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~60℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 297.6×195×21.8mm |
| Weight | 960g |
ACCESSORIES
| Display | |
| Size | 12.5” |
| Resolution | 3840×2160 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Display-port | 1×DP 1.2 |
| Video Loop Output | |
| SDI | 1×3G |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Display-port | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤16.8W |
| DC In | DC 7-20V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~60℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 297.6×195×21.8mm |
| Weight | 960g |
Product Videos
Custom Field
Screen Size 12.5 inches
Resolution 3840x2160
Screen IPS
Aspect Ratio 16:9
Housing Material Metal
Brightness 400 cd/m^2
Inputs 3G-SDI, HDMI 2.0, DisplayPort 1.2
