Product Description

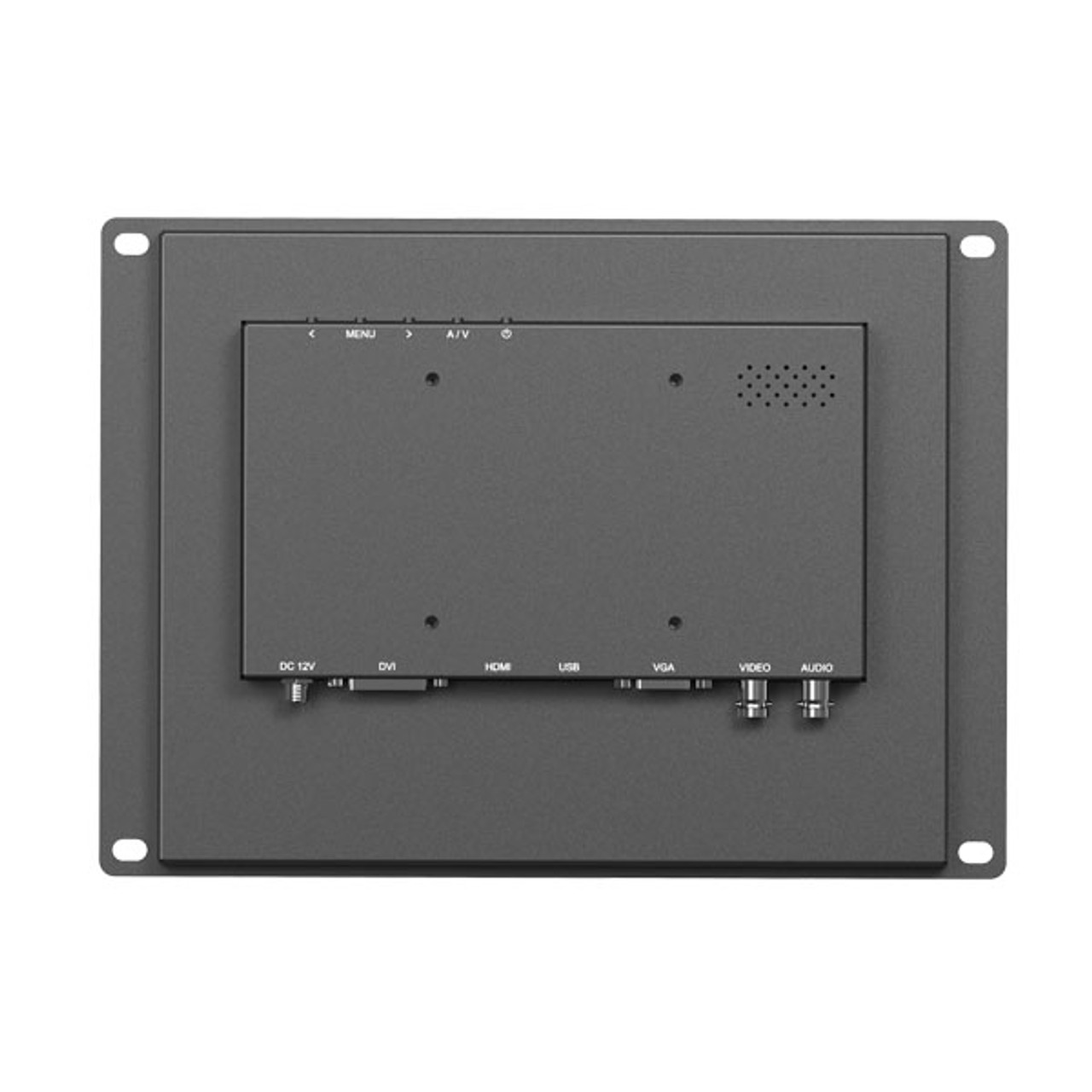

TK970-NP/C/T 9.7 inch industrial open frame touch monitor
ACCESSORIES
Display | |
Touch panel | 5-wire resistive |
Size | 9.7” |
Resolution | 1024 x 768 |
Brightness | 350cd/m² |
Aspect ratio | 4:3 |
Contrast | 900:1 |
Viewing Angle | 174°/174°(H/V) |
Video Input | |
HDMI | 1 |
DVI | 1 |
VGA | 1 |
Composite | 1 |
Supported In Formats | |
HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
Audio Out | |
Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
Built-in Speakers | 1 |
Power | |
Operating power | ≤10W |
DC In | DC 7-24V |
Environment | |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
Other | |
Dimension(LWD) | 279.6×203.5×37.6mm, 279.6×195.5×36.1mm(open frame) |
Weight | 1600g / 1300g(open frame) |
Display | |
Touch panel | 5-wire resistive |
Size | 9.7” |
Resolution | 1024 x 768 |
Brightness | 350cd/m² |
Aspect ratio | 4:3 |
Contrast | 900:1 |
Viewing Angle | 174°/174°(H/V) |
Video Input | |
HDMI | 1 |
DVI | 1 |
VGA | 1 |
Composite | 1 |
Supported In Formats | |
HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
Audio Out | |
Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
Built-in Speakers | 1 |
Power | |
Operating power | ≤10W |
DC In | DC 7-24V |
Environment | |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
Other | |
Dimension(LWD) | 279.6×203.5×37.6mm, 279.6×195.5×36.1mm(open frame) |
Weight | 1600g / 1300g(open frame) |
Product Videos
Custom Field
Screen Size 9.7 inches
Resolution 1024x768
Screen LED
Aspect Ratio 4:3
Housing Material Metal
Brightness 350 cd/m^2
Inputs AV, VGA, HDMI, DVI
