Product Description

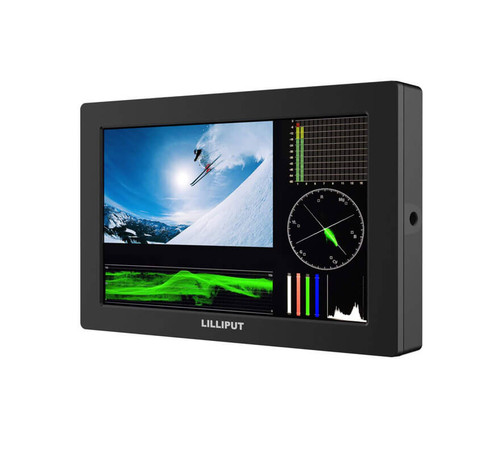

Q7 Pro (7" Full HD SDI Monitor with HDR/3D LUTs)

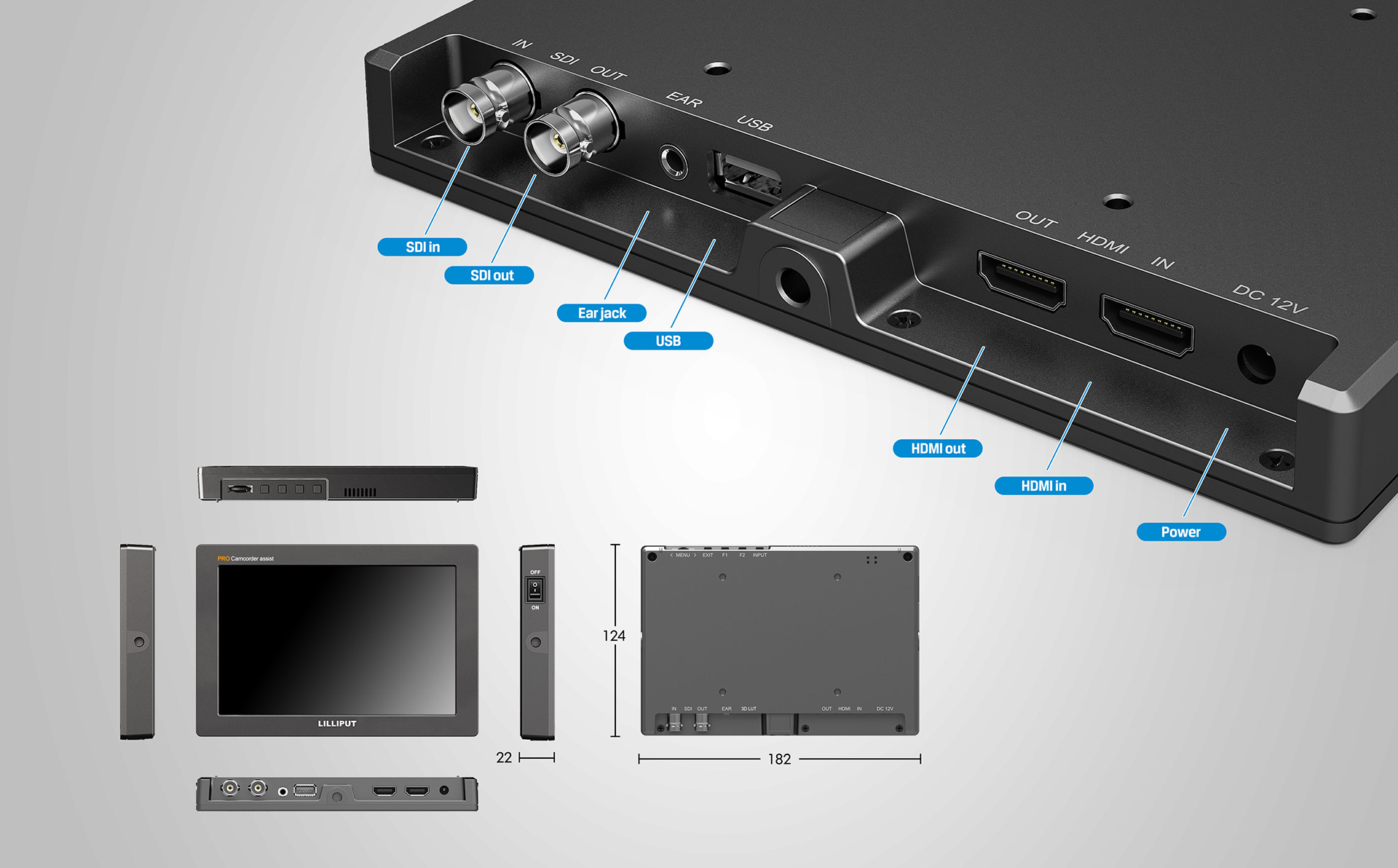

Dimensions
|
DIMENSION
|
Dimension(LWD) | 182×124×22mm |
|---|---|---|
| Weight | 405g |
| Display | |
| Size | 7” |
| Resolution | 1920 x 1200 |
| Brightness | 500cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log formats | Sony SLog / SLog2 / SLog3… |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Technology | Calibration to Rec.709 with optional calibration unit |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Video Loop Output (SDI / HDMI cross conversion) | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤12W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series and LP-E6 |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 182×124×22mm |
| Weight | 405g |
| Display | |
| Size | 7” |
| Resolution | 1920 x 1200 |
| Brightness | 500cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log formats | Sony SLog / SLog2 / SLog3… |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Technology | Calibration to Rec.709 with optional calibration unit |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Video Loop Output (SDI / HDMI cross conversion) | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤12W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series and LP-E6 |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 182×124×22mm |
| Weight | 405g |
Product Videos
Custom Field
Screen Size 7 inches
Resolution 1920x1200
Screen LED
Aspect Ratio 16:9
Housing Material Metal
Brightness 500 cd/m^2
Inputs HDMI, 3G-SDI
