Product Description

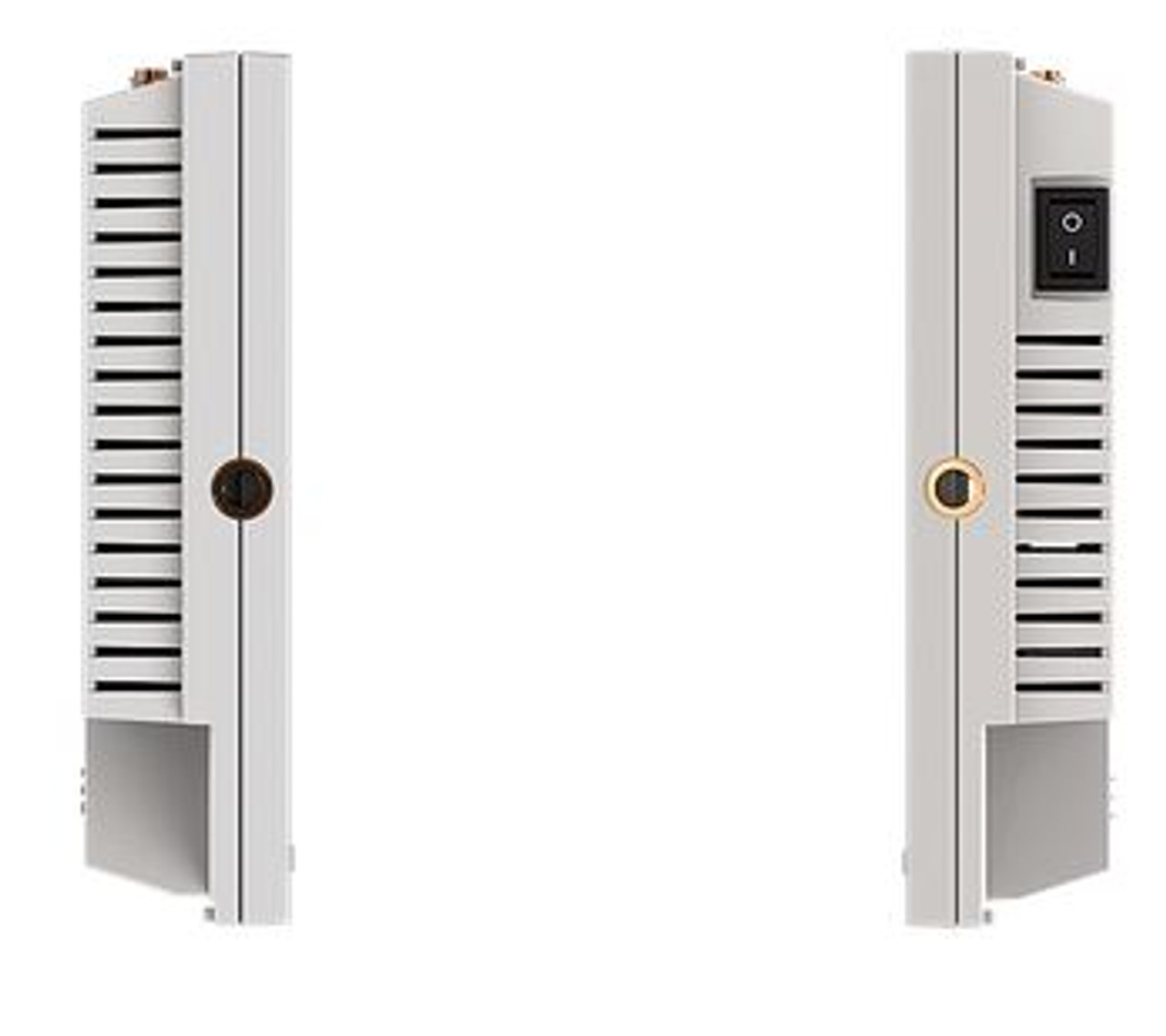

339/W-B 7inch Wireless AV Monitor
Specific Monitor by LILLIPUT for Flying Camera System.
Application for Aerial & Outdoor Photography.
Strongly recommend for aerial enthusiast & professional photographer.
339/W (with single 5.8Ghz receiver, which cover 4 bands and total 32 channels, Channel auto searching)
Features:
Excellent Display & Design
it features attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast that providing excellent viewing experience.
Channel Auto Searching
It supports 32-channel totally, press"AUTO" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.
Creatively integrated timer function to control the flight time and avoid of flight accident when operating the UAV. Timer supports up to 3-hour countdown, and it will alert when 1 minute left.
Built-in Battery & Battery Level
Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.
Wireless signal sensitivity indicator
Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.
5.8GHz Wireless AV Receiver
- Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
- Simulation of composite video AV inputs, aerial camera connection.
- 5.8Ghz frequency 4 Bands and total 32 channels.
- 100 to 2000 meters wireless distance.
- Built-in 2600mAh high capacity rechargeable battery, make power cables free.
- Snow screen, no more"blue" screen.
|
Wireless Receiver Channel (Mhz)
|
||||||||
|
|
CH1
|
CH2
|
CH3
|
CH4
|
CH5
|
CH6
|
CH7
|
CH8
|
|
Band1
|
5865
|
5845
|
5825
|
5805
|
5785
|
5765
|
5745
|
5725
|
|
Band2
|
5733
|
5752
|
5771
|
5790
|
5809
|
5828
|
5847
|
5866
|
|
Band3
|
5705
|
5685
|
5665
|
5645
|
5885
|
5905
|
5925
|
5945
|
|
Band4
|
5740
|
5760
|
5780
|
5800
|
5820
|
5840
|
5860
|
5880
|
Tip: Recommend using original Lilliput accessories to prevent device from damage.
| Display | |
| Size | 7″ IPS, LED backlit |
| Resolution | 1280×800 |
| Brightness | 400cd/㎡ |
| Aspect ratio | 16:10 |
| Contrast | 800:1 |
| Viewing Angle | 178°/178°(H/V) |
| Input | |
| AV | 1 |
| HDMI | 1 |
| Wireless 5.8GHz AV | 2 (339/DW), 1 (339/W) |
| Output | |
| AV | 1 |
| AUDIO | |
| Speaker | 1 |
| Earphone | 1 |
| Power | |
| Current | 1300mA |
| Input Voltage | DC 7-24V |
| Battery | Built-in 2600mAh battery |
| Battery Plate (optiional)) | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
| Power Consumption | ≤18W |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 185×126×30 mm |
| Weight | 385g |
